CAT 5 Network Copper Cable
(CAT 5) – Category 5 is a network cable is a type of twisted pair cable used in Ethernet networks (used in local area networks, metropolitan area networks, and wide area networks). It supports data transmission speeds up to 100 Mbps and is commonly used for standard networking applications. CAT 5 copper cable supports higher speeds (up to 1 Gbps).
CAT 5 Network
Copper Cable
(CAT 5) – Category 5 is a network cable is a type of twisted pair cable used in Ethernet networks (used in local area networks, metropolitan area networks, and wide area networks). It supports data transmission speeds up to 100 Mbps and is commonly used for standard networking applications. CAT 5 copper cable supports higher speeds (up to 1 Gbps).
1

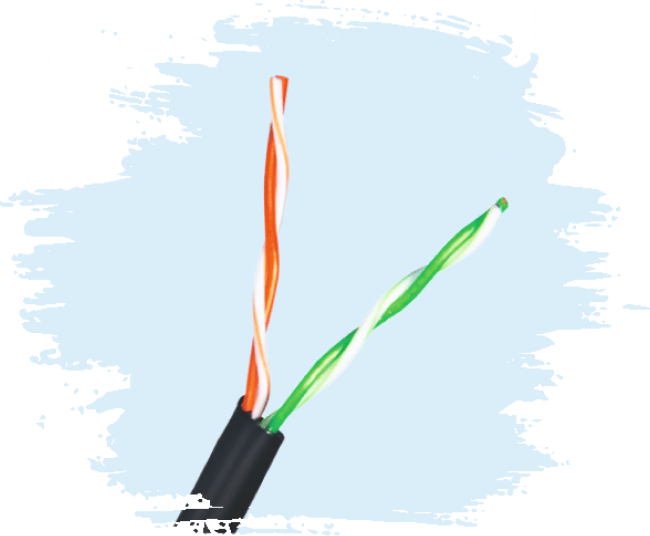

Unshielded CAT 5E
2 Pair LD Cable
CAT5E cables are Ethernet-based cables which many people have in their homes. These cables contain two twisted pairs of wires and support 100 Mbps with a range of up to 100 meters. Wirelux offers CAT5E 2-pair cables. If you want to buy these cables, they are also available in a PVC sheath with an LD sheath for maximum protection, reliability, and long-lasting installation in environmental conditions.
FEATURE AND BENEFITS:
- Good data distribution speed and the least delay
- High resistance to inductance
- Great insulation capacity
- Available in shielded and unshielded modes
- Affordable solution appropriate for ISP providers
1
Unshielded CAT 5E
2 Pair LD Cable
CAT5E cables are Ethernet-based cables which many people have in their homes. These cables contain two twisted pairs of wires and support 100 Mbps with a range of up to 100 meters. Wirelux offers CAT5E 2-pair cables. If you want to buy these cables, they are also available in a PVC sheath with an LD sheath for maximum protection, reliability, and long-lasting installation in environmental conditions.
FEATURE AND BENEFITS:
- Good data distribution speed and the least delay
- High resistance to inductance
- Great insulation capacity
- Available in shielded and unshielded modes
- Affordable solution appropriate for ISP providers
2

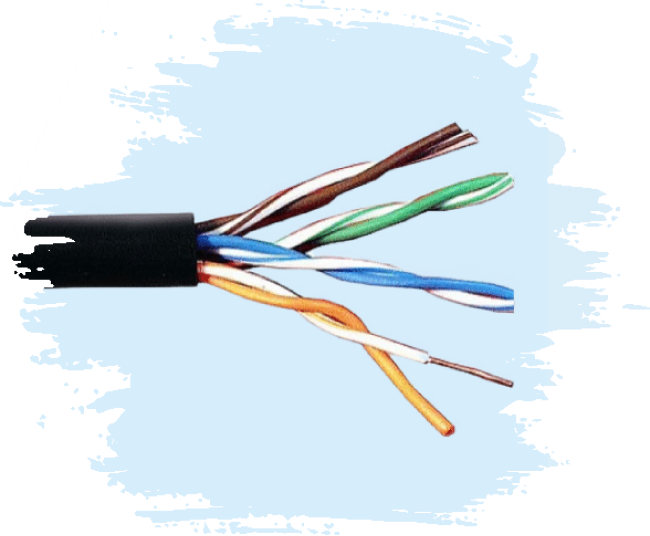

CAT 5E 24 AWG UTP
Unshielded Cable
HIGH-PERFORMANCE NETWORK CABLE (CAT5E). This 24 AWG, four-pair (8C), Cat5e Ethernet cable is plenum-rated, ideal for gigabit and fast Ethernet and supports a maximum bandwidth of 350 MHz. Provides up to 30W of PoE and 300V DC PoE+ (IEEE 802.3af/at) support.
FEATURE AND BENEFITS:
- Exceeds ISO/IEC 11801, IEC 61156-5, ANSI/TIA/EIA-568-C.2 Class D Standards
- Has an excellent margin with Cross Talk (NEXT) suppression
- Backward compatible with Cat5, appropriate for custom network installation projects
- Optionally available in Low Smoke Zero Halogen (LSZH), PE jacket, and armored versions
2
CAT 5E 24 AWG UTP
Unshielded Cable
HIGH-PERFORMANCE NETWORK CABLE (CAT5E). This 24 AWG, four-pair (8C), Cat5e Ethernet cable is plenum-rated, ideal for gigabit and fast Ethernet and supports a maximum bandwidth of 350 MHz. Provides up to 30W of PoE and 300V DC PoE+ (IEEE 802.3af/at) support.
FEATURE AND BENEFITS:
- Exceeds ISO/IEC 11801, IEC 61156-5, ANSI/TIA/EIA-568-C.2 Class D Standard
- Has an excellent margin with Cross Talk (NEXT) suppression
- Backward compatible with Cat5, appropriate for custom network installation projects
- Optionally available in Low Smoke Zero Halogen (LSZH), PE jacket, and armored versions
3
CAT 5E 24 AWG DJ
Shielded Cable
With dual shielding, the Wirelux Cat5e DJ shielded cable delivers enhanced EMI interference prevention and physical damage resistance. It meets 1000 Base-T criteria, making it ideal for data centers, server farms, and other bandwidth-intensive applications, as well as outdoor installations.
FEATURE AND BENEFITS:
- 24AWG solid bare copper conductors
- Available with a PE jacket
- Superior margin for Cross Talk (NEXT) suppression
- CMX Outdoor Weather-Proof rated
3
CAT 5E 24 AWG DJ
Shielded Cable
With dual shielding, the Wirelux Cat5e DJ shielded cable delivers enhanced EMI interference prevention and physical damage resistance. It meets 1000 Base-T criteria, making it ideal for data centers, server farms, and other bandwidth-intensive applications, as well as outdoor installations.
FEATURE AND BENEFITS:
- 24AWG solid bare copper conductors
- Available with a PE jacket
- Superior margin for Cross Talk (NEXT) suppression
- CMX Outdoor Weather-Proof rated
4

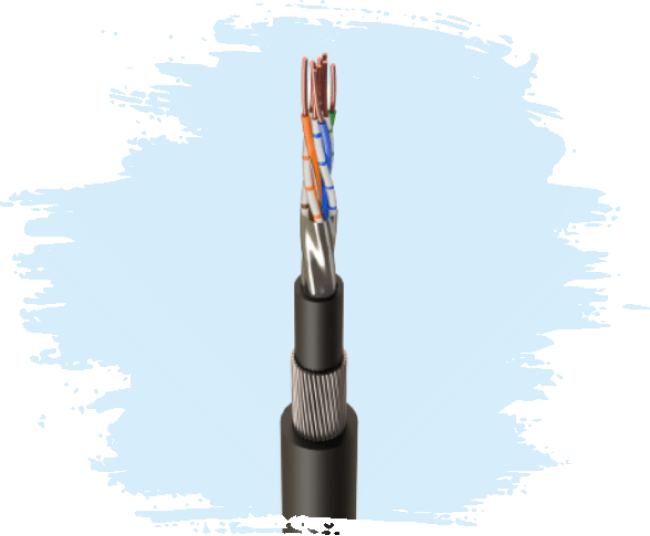

CAT 5E 24 AWG UTP
Armoured Cable (AL)
For applications requiring outdoor cable installation between buildings or in open campus areas exposed to harsh environments, Wirelux Cat5e armored cable provides superior physical damage protection with aluminum armor and meets 1000 Base-T electrical performance requirements.
FEATURE AND BENEFITS:
- FR PVC Jacket for flame resistance
- 4-pair unshielded twisted pair (UTP) cable
- Operates at a bandwidth of up to 100 MHz
4
CAT 5E 24 AWG UTP
Armoured Cable (AL)
For applications requiring outdoor cable installation between buildings or in open campus areas exposed to harsh environments, Wirelux Cat5e armored cable provides superior physical damage protection with aluminum armor and meets 1000 Base-T electrical performance requirements.
FEATURE AND BENEFITS:
- FR PVC Jacket for flame resistance
- 4-pair unshielded twisted pair (UTP) cable
- Operates at a bandwidth of up to 100 MHz
5

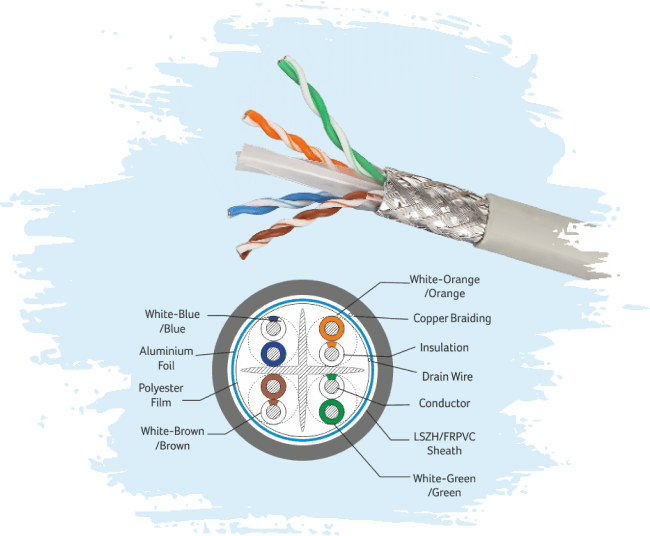

CAT 5E 24 AWG SFTP
Armoured Cable (AL)
For outdoor installations in campuses or harsh environments, Wirelux Cat5e armored cable offers enhanced physical protection and blocks EMI interference using braid and Mylar tape construction. It meets 1000 Base-T requirements.
FEATURE AND BENEFITS:
- Complies with Cat5e specifications
- Pairs wrapped in polyester tape and aluminum foil with drain wire
- Verified compliance with EIA/TIA standards by ETL
5
CAT 5E 24 AWG SFTP
Armoured Cable (AL)
For outdoor installations in campuses or harsh environments, Wirelux Cat5e armored cable offers enhanced physical protection and blocks EMI interference using braid and Mylar tape construction. It meets 1000 Base-T requirements.
FEATURE AND BENEFITS:
- Complies with Cat5e specifications
- Pairs wrapped in polyester tape and aluminum foil with drain wire
- Verified compliance with EIA/TIA standards by ETL
